IMPORTANT INFORMATION

CAM BUCKLE OPERATION

TENSION
RELEASE-
Pull Handhold Firmly. Cam will retain applied tension.
Depress Cam Lever to release strap tension.

RATCHET OPERATION

TENSION-


RELEASE-

Pull excess webbing through Ratchet Mandrel. Pump ratchet handle until webbing is properly tensioned with a minimum of (2) webbing wraps around Ratchet Mandrel. Close buckle handle to position shown.
Disengage "LOCKING LATCH" by rotate Ratchet Handle to over center-flat position. "Yank" one layer of webbing to release Ratchet Mandrel.

VINYL "S" HOOKS are applied to both ends of all M&R Motorcycle/ATV Tie-Downs, to protect your cycle's paint and chrome parts and your truck or trailer.

MINIMUM BREAK RATING (MBR) is the minimum tension load an assembly will restraint without failure, when in new-unused condition.

OVERALL LENGTH is the unit operating length when measured hook end to hook end.

VEHICLE WEIGHT RECOMMENDED TYPE / SIZE QUANTITY
Under 400 Lbs. 1" 1200 Lb. Strap & 1" Wheel Tie 1 Pair
400 to 750 Lbs. 1" 1200  Lb. Straps 2 Pair
Over 750 Lbs. 2" 2500 Lb. Straps 2 Pair
 M&R TIE-DOWN RATINGS are based on the rating of the weakest component. Higher webbing and sewing patters are provided for added abuse and abrasion resistant characteristics. Care should be taken to ensure that the appropriate rated assembly(s) is used for each load.

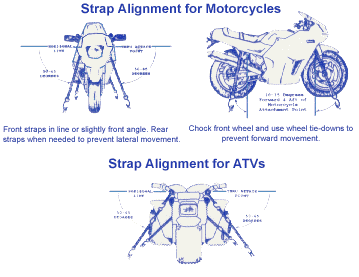

  Position vehicle to be secured. Always chock wheels and use wheel tie-downs.
Attach one hook end to handlebar or frame member, where it will not slip.
Attach opposing hook end to trailer, truck or van attachment hardware hardware, i.e. eyebolt, "D" Ring, in manner that will not slip.

NOTE: Hardware must have equal or greater strength than strap.

Pull excess webbing through mandrel. Pump ratchet to desired tension, (minimum two full turns of webbing). Close handle flat against ratchet to engage safety lock.
To achieve maximum rated capacity, all hooks and buckle must be in line with direction of pull.
Protect webbing from sharp edges, hot surfaces and acids. DO NOT use if webbing is cut, frayed or damaged.
Tie-Downs are not to be used for lifting, towing or personal restrains.
