AUTO
TIE-DOWNS
|
| |
|

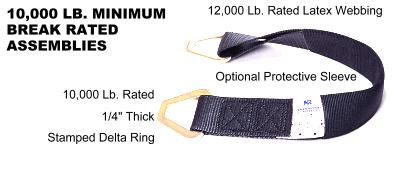

2" AXLE STRAP ASSEMBLIES |
|
|
|
P/N 80978-11S
Pictured
|
- Load Rated Hardware which
has been Treated for corrosion resistance,
- 12,000 Lb. Test Rated
Polyester Latex Webbing
for its high abrasion, abuse and resistance and
non-stretch characteristics.
|
|
|
Webbing Colors
Gold
Blue
Red
Black |
|
All orders will be shipped
with "Gold Webbing" unless you specify color.
Be sure to specify your
desired color when placing an order.
|
|
|
TIPS
|
|
The AXLE
STRAP is designed for use in conjunction with a RATCHET
WHEEL STRAP as shown at the below.
... Each AXLE
STRAP assembly is fabricated with Polyester
Latex Webbing having a 12,000 Lb. tension
rating for optimum restraint-load retention
performance, plus high abrasion and abuse resistance.
Non-stretch characteristics of the webbing
significantly increases assembly security and service life.
The Polyester Webbing protects the axle
finish, brake lines, and other structural car members by
eliminating all metal-to-metal contact and provides positive
safe-secure tie-down of your car around axles, lower control
arms, or other structural members during trailer
transportation.
|
|
|
The "D" Rings ends holds the webbing in a straight
flat position ensuring equal load distribution over the full
width of the webbing for a more secure tie-down and added
service life.
RECOMMENDED USE: ... Two (2)
Axle Straps should be used on both front and rear end
of car. The Axle Straps and Ratchet Wheel Straps selected
should be based on the following criteria:
| Recommended
Assembly Capacity |
Car
Gross Weight |
Minimum
Assembly
Rating |
2,100 Lbs. or
Less
3,300 Lbs. or Less
Over 3,300 Lbs. |
3,500 Lb.
5,000 Lb.
10,000 Lb. |
|
CAUTION:
If Axle Straps are being used in conjunction with Ratchet
Wheel Straps, the Axle Straps and Ratchet Straps should have
compatible ratings. (Refer to Operating and Technical
Information Section).
|
|
